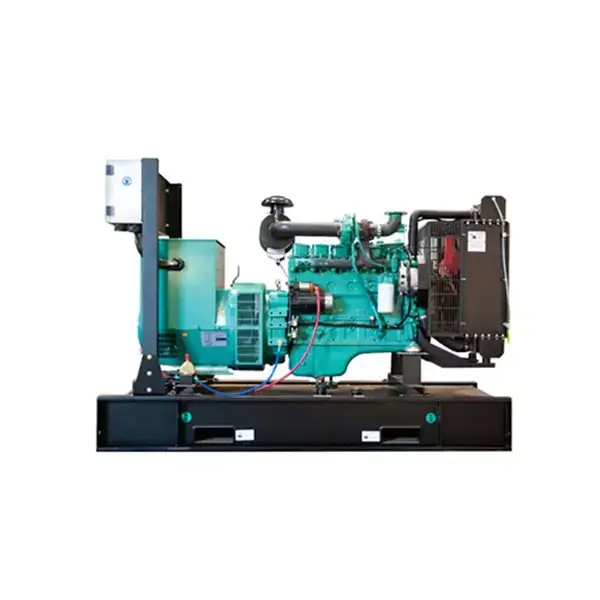

Cummins 125kva Diesel 3ph Open Frame Generator

$22,773.00

Cummins 125kva Diesel 3ph Open Frame Generator

1 in stock

SKU: SDC125OF Categories: ,

Description

Cummins diesel engine 6BTAA5.9-G. With the radiator at an ambient temperature of 50 C, fans are driven by a belt, with a safety guard, and With DC 24V charge alternator. Stamford Alternator Model: STAMFORD UCI274E, single bearing alternator; IP23 Protection, Insulation class H. Stand type control panel with many kinds of Display and Protection function is equipped. Two 12V starters with maintenance-free battery. Power output MCCB is equipped. Accessory: A suit of ripple flex exhaust pipe; exhaust siphon, muffler; and a set of spare parts & Tools & Documents.

Specifications

MODELSD-C125
FREQUENCY (Hz)50
RATED OUTPUT (kVA)125
MAX OUT PUT (kVA)138
RATED CURRENT (A)181.1
RATED SPEED (rpm)1500
PHASE NUMBERThree
STARTING SYSTEM24V Electric Starter
LUB OIL BRANDGTX SAE15W-40
FUEL TYPEDiesel
FUEL TANK CAPACITY(L)190
ENGINE MODEL CUMMINS6BTAA5.9G
ALTERNATOR MODEL STANFORDUCI274E
OPEN FRAMEOPEN FRAME
NET WEIGHT (KG)1350
DIMENSIONS (LxWxH) (mm)2300x860x1570
SILENT TYPE SILENT TYPESILENT TYPE
NET WEIGHT (KG)1848
DIMENSIONS (LxWxH) (mm)3200x1080x1650
FIRST SERVICE (HRS)50
2nd SERVICE ONWARDS (HRS)200
WARRANTY (MONTHS)16 Months Or 1500hrs
